Electric Double Gate Gate Valve With Remote Control

The electric double-gate gate valve with remote control designed by Dazhong Valve Group is connected by middle flange bolts. Do the lifting movement. The valve seat and valve disc sealing surface are made of drill-base cemented carbide plasma spray welding, the surface of the valve stem is treated with anti-corrosion nitriding, and the opening and closing of the valve are controlled by the electric device. controller, torque control mechanism, field operation mechanism, stroke control mechanism, electric switching mechanism.

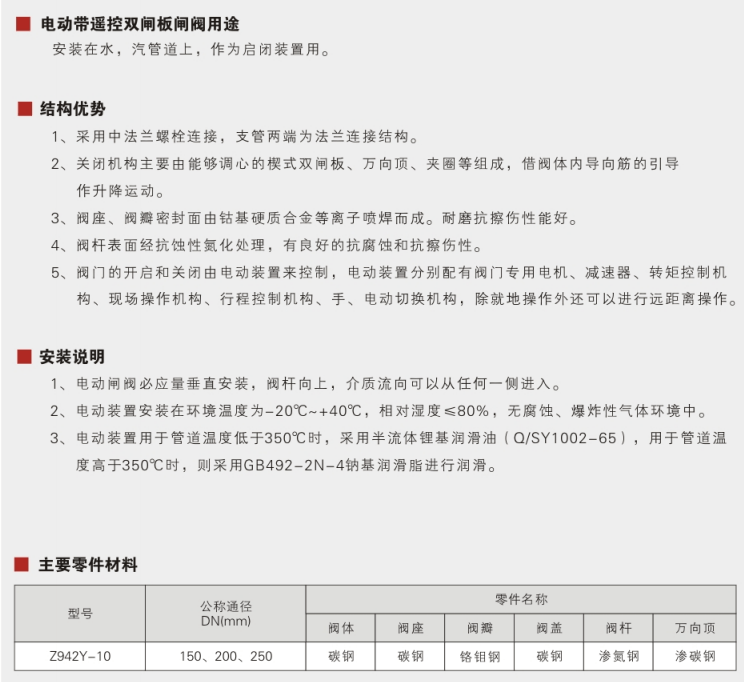

• Installed on water and steam pipes, used as an opening and closing device.

• The middle flange bolt connection is adopted, and the two ends of the branch pipe are flange connection structure.

• The closing mechanism is mainly composed of self-aligning wedge-type double gates, universal tops, clamping rings, etc., which are guided by the guide ribs in the valve body to move up and down.

• The valve seat and valve disc sealing surface are made of drill-base cemented carbide plasma spray welding. Good wear resistance and abrasion resistance.

• The surface of the valve stem is treated with anti-corrosion nitriding, which has good corrosion resistance and scratch resistance.

• The opening and closing of the valve is controlled by an electric device, which is equipped with a special motor for the valve, a reducer, a torque control mechanism, an on-site operating mechanism, a stroke control mechanism, a hand, and an electric switching mechanism. In addition to the operation, remote operation can also be performed.
