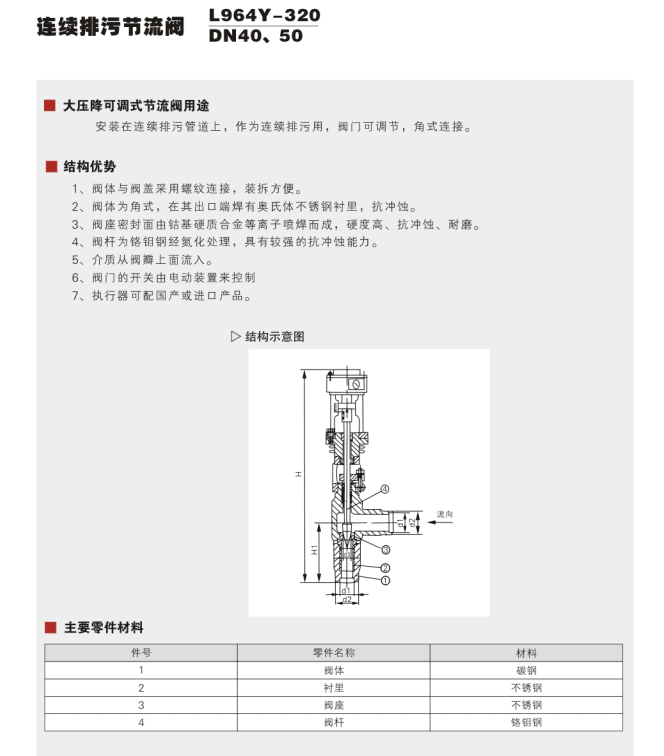

Large Pressure Drop Adjustable Throttle Valve

The large pressure drop adjustable throttle valve designed by Dazhong Valve Group, the valve body and the bonnet are connected by thread, the valve body is an angle type, and the outlet end is welded with austenitic stainless steel lining, and the sealing surface of the valve seat is made of drill base hard It is made of alloy plasma spray welding, the valve stem is made of Ming aluminum steel and is nitrided, and the medium flows in from the valve disc. The opening and closing of the valve is controlled by an electric device.

• Installed on the continuous sewage pipeline for continuous sewage discharge, the valve can be adjusted, and the angle connection is made. The valve body and the valve cover are connected by thread, which is convenient for assembly and disassembly.

• The valve body is an angle type, and the outlet end is welded with austenitic stainless steel lining, which is resistant to erosion. The sealing surface of the valve seat is made of drill-based cemented carbide plasma spray welding, with high hardness, erosion resistance, Durable.

• The valve stem is made of Ming-aluminum steel, which has been nitrided and has strong erosion resistance. The medium flows in from the top of the valve disc.

• The switch of the valve is controlled by an electric device. The actuator can be equipped with domestic or imported products
