ZDLM Electronic Sleeve Electric Control Valve - Dazhong Valve Group | Since 1997

ZDLM Electronic Sleeve Electric Control Valve

ZDLM electronic sleeve electric control valve produced by Dazhong Valve Group, ZDLM electronic electric sleeve control valve is composed of PS series or 3610 series straight stroke electric actuator and low flow resistance straight through single seat valve. The electric actuator is an electronic integrated structure with a servo amplifier inside. The valve opening can be controlled by inputting the control signal (4-20mADC or 1-5VDC) and power supply, and the working parameters such as pressure, flow rate, liquid level and temperature can be controlled. adjust. It has the characteristics of sensitive action, simple connection, large flow, small size and high adjustment accuracy.

  • European hardcover, precise control, good sealing, advanced design and high quality

  • Superb technology, superior structure, smooth flow, quick response, substitute for import

  • Small pressure drop loss, stable output force, large flow coefficient, equal smooth section of channel

  • Wide adjustment range, high accuracy of flow characteristics, top guide structure, easy operation of handwheel

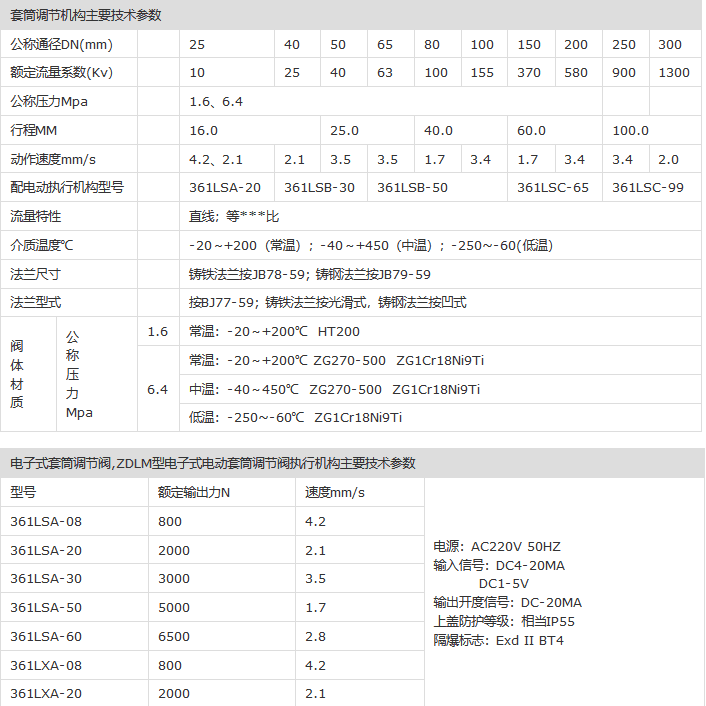

Parameters

Few Listed Here

Ask For Details

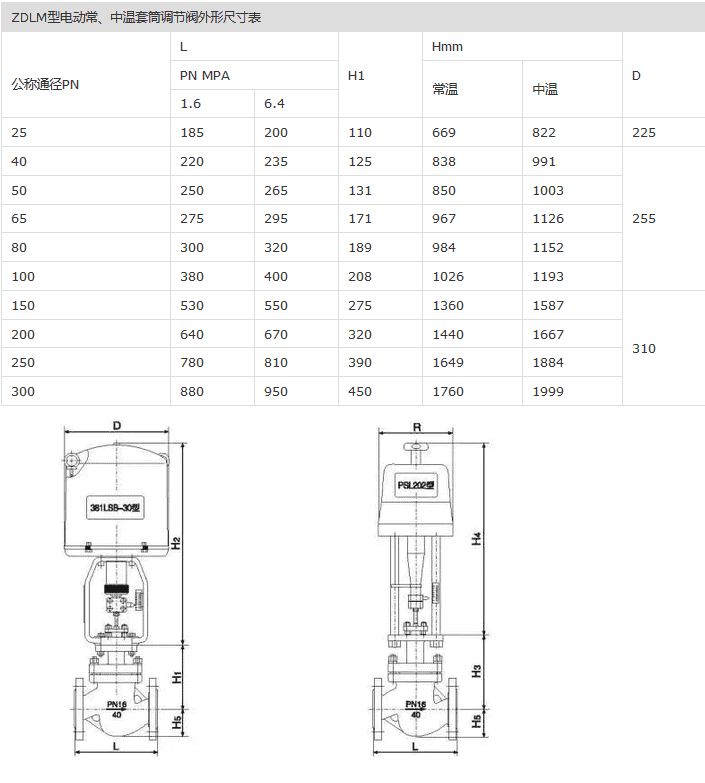

ZDLM Electronic Sleeve Electric Control Valve ParameterZDLM Electronic Sleeve Electric Control Valve Parameter 1
