High Temperature And High Pressure Safety Valve - Dazhong Valve Group | Since 1997

High Temperature And High Pressure Safety Valve

The high temperature and high pressure safety valve co-brand YOY Yongyi Valve Group safety valve designed by Dazhong Valve Group, this valve is suitable for working temperature "C type" ≤ 425 ℃; "I type" ≤ 500 ℃; "V type" ≤ 500 ℃; It is used as an overpressure protection device on medium equipment or pipelines such as steam. The connecting flange standard is JB/T...94 series 1 and series 2.

  • This valve is suitable for steam and other medium equipment or pipelines with working temperature "C type"≤425℃; "I type"≤500℃; "V type"≤500℃; as an overpressure protection device. The connection flange standard is according to JB/T...94 series 1, series 2.

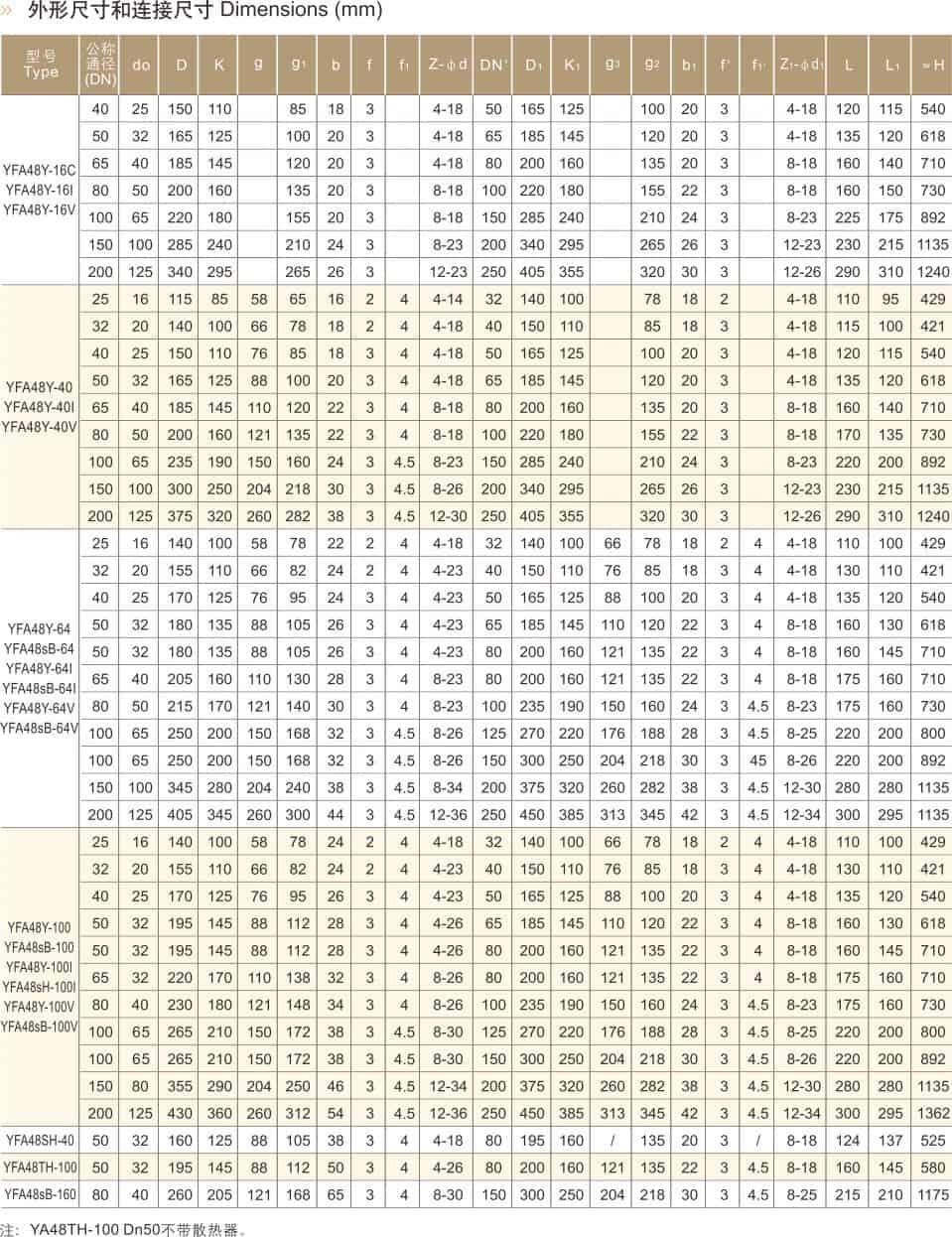

Parameters

Few Listed Here

Ask For Details

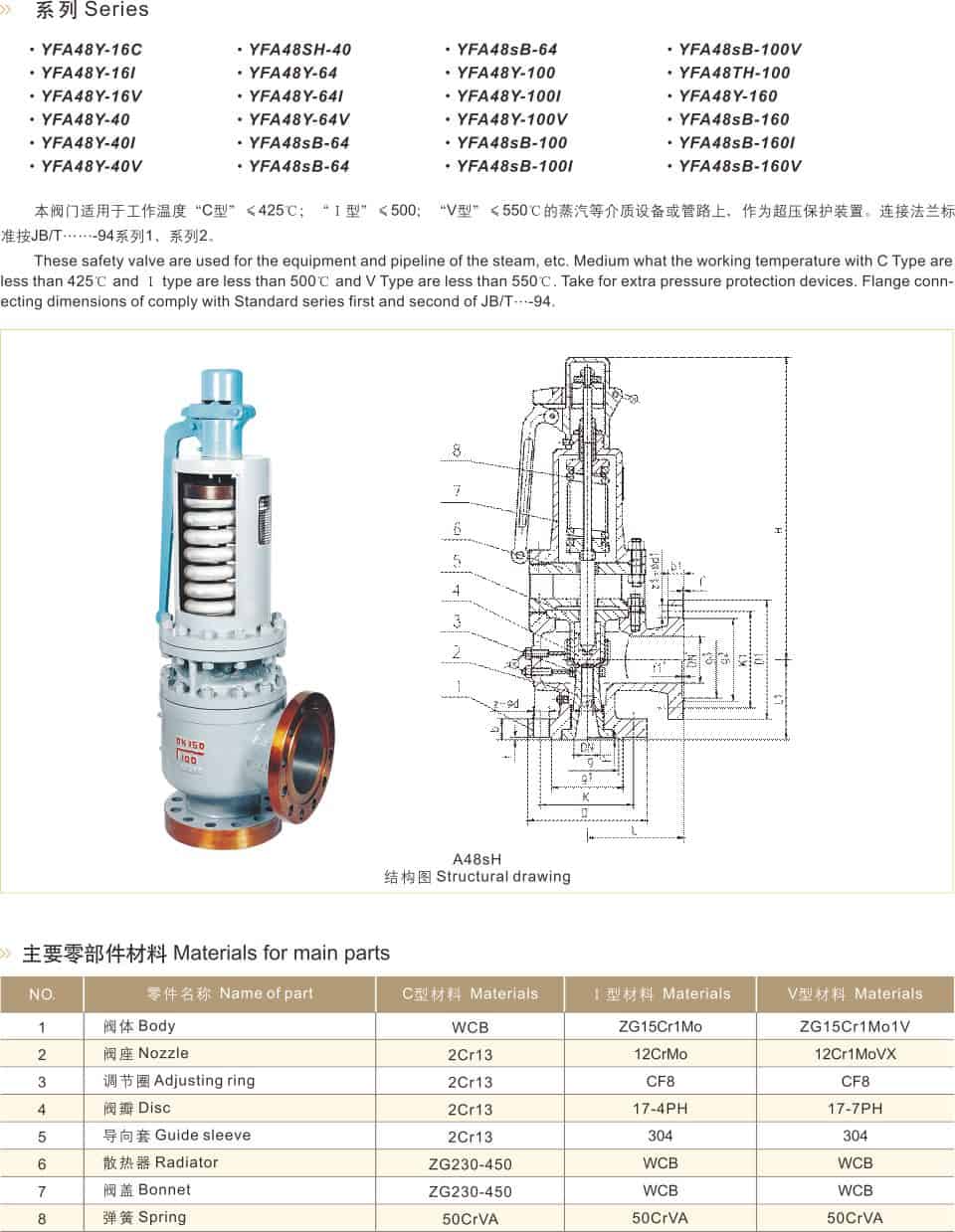

High temperature and high pressure safety valve parameters高温高压安全阀参数
