LPG Safety Valve Safety Return Valve
The liquefied petroleum gas safety valve safety return valve designed by Dazhong Valve Group is a cooperative brand of YOY Yongyi Valve Group safety valve. When the pressure difference between the inlet and outlet is 0.5Mpa, the liquefied petroleum gas can automatically return to the tank. Safety return valve, AHN42F parallel safety return valve is installed on the liquid-phase return pipeline at the outlet of the tank pump of the LPG station. When the pressure in front of the pump exceeds the specified value, the valve will automatically open and play the role of safety return to ensure the safety of equipment and pipelines. safe operation.

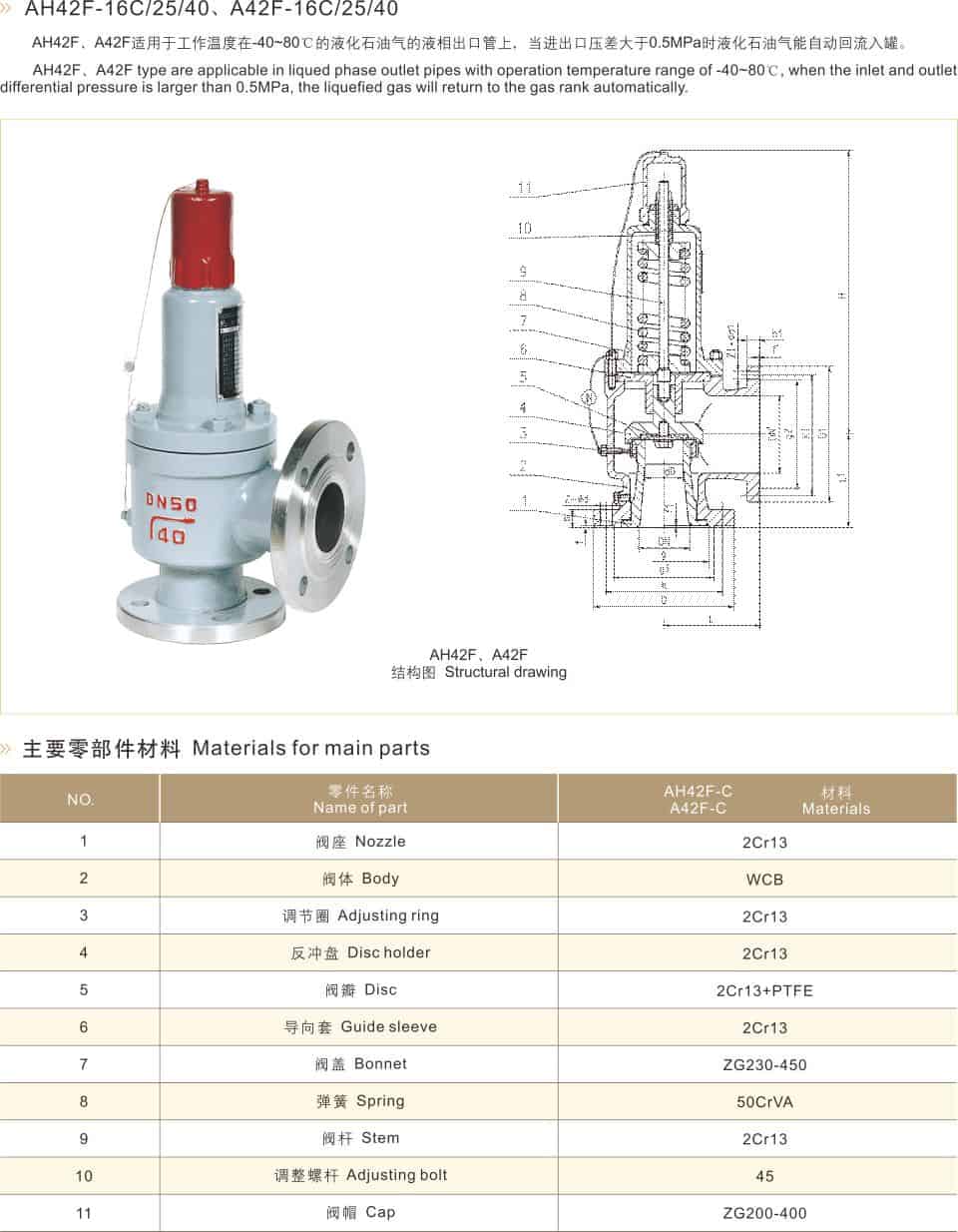

AH42F-16C, AH42F-25, AH42F-40 LPG safety return valve is suitable for the liquid phase outlet pipe of LPG whose working temperature is -40~80℃. When the pressure difference between inlet and outlet is 0.5Mpa The LPG can be automatically returned to the tank when the time comes.
Safety return valve, AHN42F parallel safety return valve is installed on the liquid phase return pipeline at the outlet of the tank pump of the LPG station. When the pressure in front of the pump exceeds the specified value, the valve will automatically open and play a role in safe return flow, ensuring that Safe operation of equipment and pipelines.
The safety return valve is suitable for the liquid phase outlet pipe of LPG with a working temperature of -40～80℃. When the pressure difference between the inlet and outlet is 0.5MPa, the LPG can automatically flow back into the tank.
